Home > Products > Microphone Series > UHF Wireless Conference System with single channel

UHF Wireless Conference System with single channel

Product name：UHF Wireless Conference System with single channel

Category： Microphone Series

Item：UHS-11(TSH-09/TSB-01)

Details：

Specification( Receiver)
Model: UHS-11

Channels: Single Channel
Frequency Range: UHF 600-790MHz
Modulation: FM
Adjustable channels:80
Oscillation mode: PLL Synthesized
S/N Ratio: >90dB
T.H.D （1 Khz）: <0.5%
Power Supply: DC 12V-18V
Consume Power: 5W
Display: LCD

Material: Iron case/ aluminum panel
Operation Distance:50-80 M
Weight: 1.9kg
Dimension: 210 x 180 x 45mm

Specification(Mic)

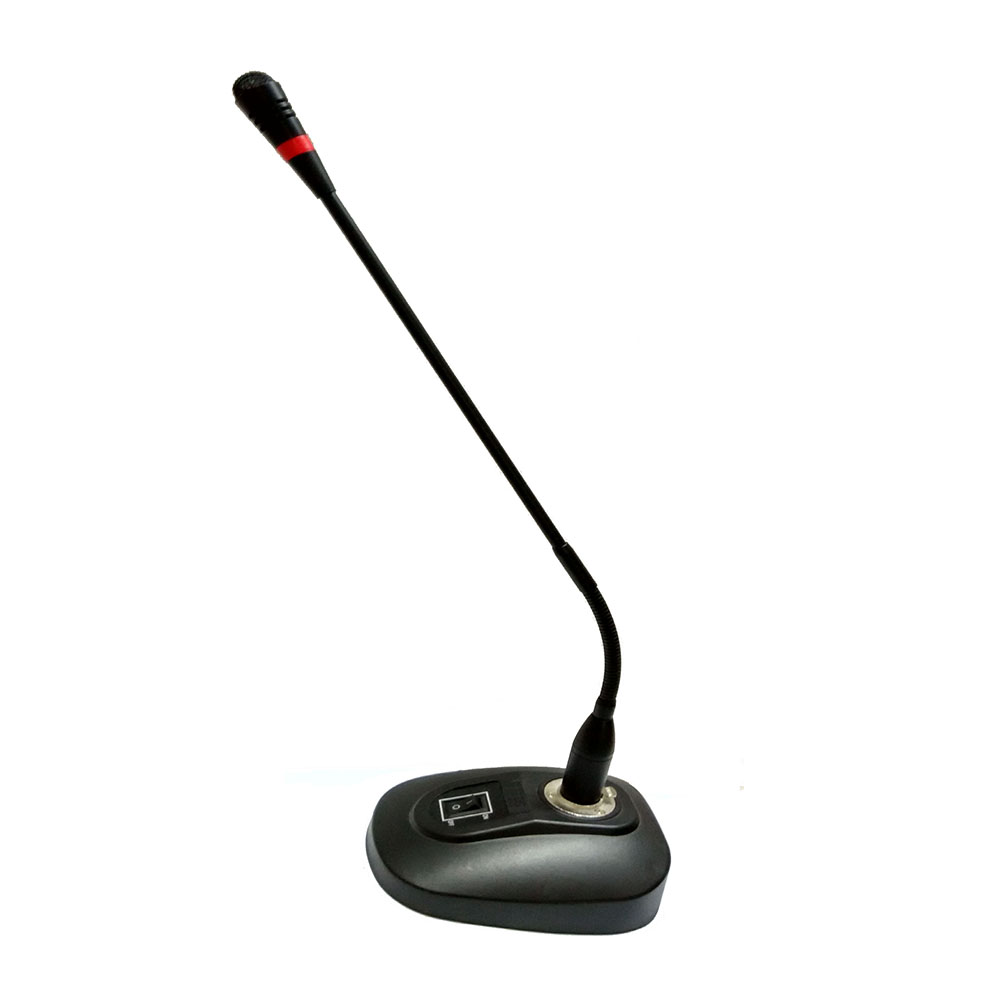

Model: TSH-09
Frequency range: UHF 600-790MH
Spurious emission: -60dB RF
Power output: 10-30mw
Element：Cardiod dynamic
Battery:2x1.5V AA Size
Battery Life: 8~20 hours
Weight: 0.36Kg
Dimension:ф36*254mm

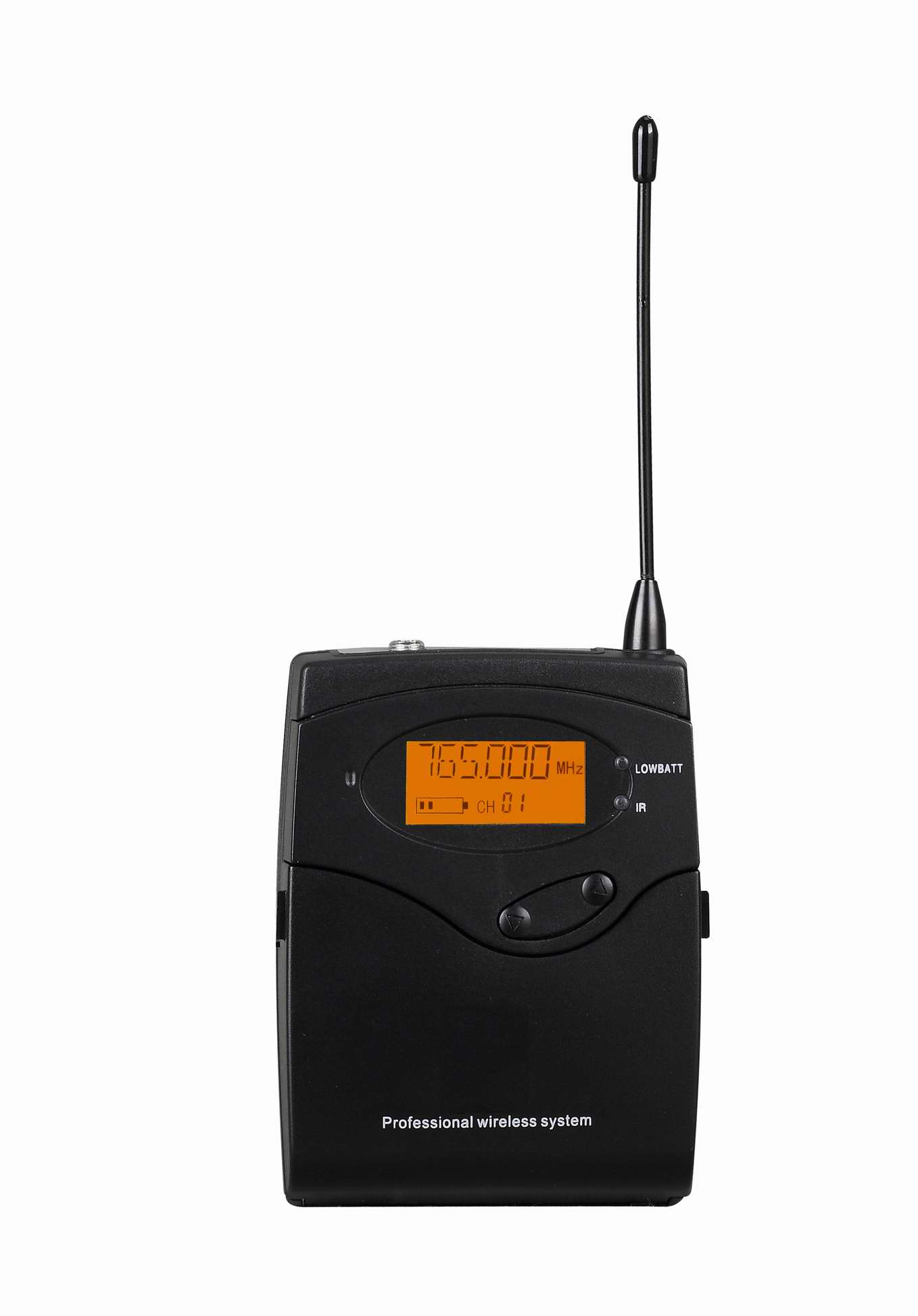

Model: TSB-01
Element：Cardiod condenser
Frequency range: UHF 600-790MH
RF Power output: 100mA
Battery:2x1.5V AA Size
Battery Life: 8~15 hours
Weight: 100g
Dimension:110*63*18mm
