Home > Products > Microphone Series > UHF Wireless Conference System with single channel

UHF Wireless Conference System with single channel

Product name：UHF Wireless Conference System with single channel

Category： Microphone Series

Item：UFS-10A( TSH-07 or TSB-03)

Details：

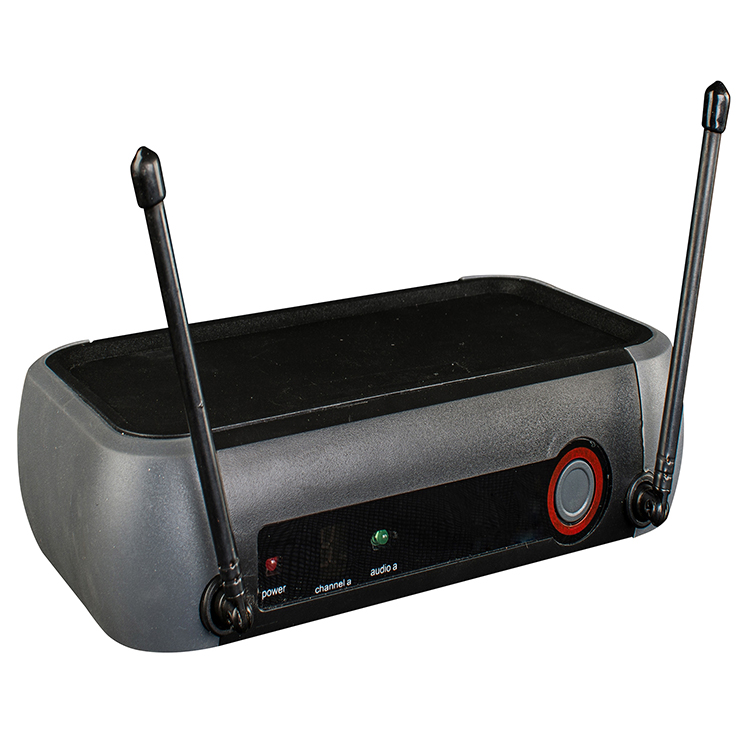

Specification(Receiver)
Model: UFS-10A
Channels: Single Channel
Frequency Range: UHF 470-865 MHz
Carrier Wave Stability: 10 PPM
Oscillation mode: Quartz Controlled Fixed Frequency
AF Output: 0-300mV
S/N Ratio: >90dB
Spurious rejection: >80 dB
Sensitivity: 2uV @ Sinad=12 dB
Power Supply: DC 12-18V
Consume Power: 3W
Operation Distance:50 M
Weight:1.7 kg
Dimension: 175 x 108 x 40mm
Packing: Portable plastic box

Specifiaction ( Transmitter)

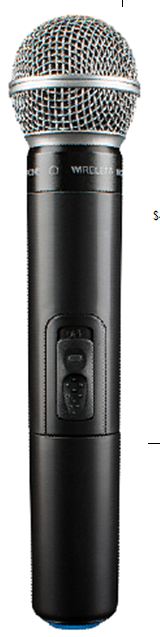

Model: TSH-07
Frequency range: UHF 470-865 MHz
Freq Stability: <0.002%
Power output: 10 mW
Element：Cardiod dynamic
Battery:2x1.5V AA Size
Battery Life: 5-7 hours
Weight: 0.36Kg
Dimension:ф52*236mm

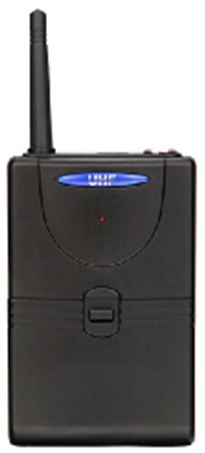

Model: TSB-03
Frequency range: UHF 470-865 MHz
Freq Stability: <0.002%
Power output: 10 mW
Element：Cardiod condenser
Battery:2x1.5V AA Size
Battery Life: 5-7 hours
Weight: 0.36Kg
Dimension:103 x 65 x30 mm
